| एमओक्यू: | 1 Ton |
| कीमत: | विनिमय योग्य |
| मानक पैकेजिंग: | In bundles or in wooden boxes. |
| वितरण अवधि: | 20-40days |
| भुगतान विधि: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| आपूर्ति क्षमता: | 60000 Ton/Tons per Year |

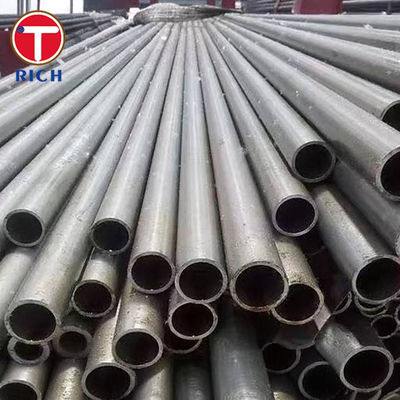

JIS G3456 STPT 410 is a carbon steel pipe grade designed for high temperature and high pressure service. It is manufactured as seamless or welded steel pipes with excellent strength, toughness, and thermal resistance, making it suitable for boilers, heat exchangers, and other high-temperature piping systems.
Standard: JIS G3456
Grade: STPT 410
Type: Seamless or welded carbon steel pipe
Size Range: Commonly 10.3 mm – 660 mm OD (can be customized)
Wall Thickness: 2.0 mm – 60 mm
Surface Finish: Black, bare, or coated as required
| Grade | C (%) | Si (%) | Mn (%) | P (%) max | S (%) max |
|---|---|---|---|---|---|
| STPT 410 | ≤0.30 | ≤0.35 | 0.30–0.90 | ≤0.035 | ≤0.035 |
| ASTM A106 Gr.B | ≤0.30 | ≤0.35 | 0.29–1.06 | ≤0.035 | ≤0.035 |
| DIN 17175 St35.8 | ≤0.17 | ≤0.35 | 0.40–0.80 | ≤0.035 | ≤0.035 |
| EN 10216-2 P235GH | ≤0.16 | ≤0.40 | 0.60–1.20 | ≤0.025 | ≤0.020 |
| GB 5310 20G | ≤0.20 | ≤0.35 | 0.35–0.80 | ≤0.025 | ≤0.020 |
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
|---|---|---|---|
| STPT 410 | ≥410 | ≥245 | ≥30 |
| ASTM A106 Gr.B | ≥415 | ≥240 | ≥30 |
| DIN 17175 St35.8 | ≥410 | ≥235 | ≥25 |
| EN 10216-2 P235GH | ≥360 | ≥235 | ≥25 |
| GB 5310 20G | ≥410 | ≥245 | ≥25 |
Excellent performance under elevated temperature and pressure conditions
High strength and toughness with good ductility
Reliable weldability and machinability
Suitable for seamless and welded execution
Long service life in harsh thermal environments
JIS: JIS G3456
ASTM: ASTM A106 / ASTM A335 (comparable grades)
EN: EN 10216-2
DIN: DIN 17175
GB: GB 5310
JIS G3456 STPT 410 carbon steel pipes are widely used in high-temperature and pressure-bearing applications, including:
Power Plants: Boiler tubes, superheater tubes, reheater lines
Petrochemical Industry: Heat exchangers, refinery piping, furnace tubes
Industrial Boilers: Steam piping, water walls, economizers
Chemical Plants: High-pressure process piping, reactors
Other Engineering Fields: Pressure vessels, thermal power piping networks
A: manufacturer,also can do trading.
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
|
|
