| एमओक्यू: | 1 टन |
| कीमत: | 800-1000 USD/Tons |
| मानक पैकेजिंग: | बंडलों में या लकड़ी के बक्सों में. |
| वितरण अवधि: | उत्पादों पर 20-30 दिन |
| भुगतान विधि: | एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम |
| आपूर्ति क्षमता: | 60000 टन/टन प्रति वर्ष |

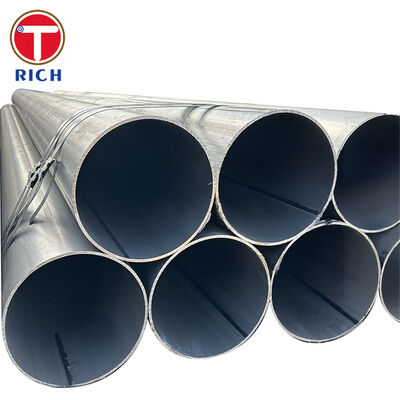

ASTM A134 electric-fusion arc-welded steel pipe is a large-diameter welded pipe solution for structural applications requiring stable roundness, controlled wall thickness, reliable weld integrity, and flexible dimensional customization. ASTM A134 covers straight-seam or spiral-seam electric-fusion arc-welded steel pipe in NPS 16 and larger sizes, normally with wall thickness up to 3/4 in. [19 mm], while other dimensions may be supplied when they meet the remaining specification requirements. The steel grade is selected according to the ASTM plate specification ordered by the purchaser, making ASTM A134 suitable for structural columns, pipe piles, bridge structures, marine structures, heavy equipment frames, and large fabricated steel assemblies.
| Item | Description |
|---|---|
| Material | Carbon steel plate / low-alloy structural steel plate |
| Standard | ASTM A134 / A134M |
| Common Grades | ASTM A36, ASTM A283 Grade C, ASTM A285 Grade C, ASTM A572 Grade 50, ASTM A516 Grade 70 |
| Manufacturing Method | Electric-fusion arc-welded, straight seam or spiral seam |
| Outside Diameter | NPS 16 and above; commonly 406.4 mm and larger |
| Wall Thickness | Up to 19 mm under ASTM A134 scope; other thicknesses by agreement if compliant |
| Length | 1–12 m, custom fixed length available |
| Tolerance Range | According to ASTM A134 / project drawing / purchase order |
| Straightness | Controlled for structural fit-up; project-specific straightness tolerance available |
| Surface Condition | Bare, black, shot-blasted, primer-coated, anti-corrosion coated, or galvanized by agreement |
| Heat Treatment | As-welded normally; stress relieving or other heat treatment by agreement when required |
| Inspection | Visual inspection, dimensional inspection, weld inspection, hydrostatic test or NDT by agreement |
| Application Positioning | Large-diameter structural steel pipe requiring weld reliability and dimensional consistency |
| Procurement Concern | Practical Risk | Our Solution |
| Grade selection is often unclear because ASTM A134 is a pipe manufacturing standard, not a single-grade material standard. | The wrong plate grade may lead to insufficient yield strength, poor weldability, or non-compliance with project drawings. | We confirm the design requirement first, then match the pipe with suitable plate grades such as A36, A283 Grade C, A572 Grade 50, A285 Grade C, or A516 Grade 70, with MTC traceability to the ordered plate standard. |
| Large-diameter welded pipe may show weld misalignment, uneven reinforcement, or poor fit-up. | Poor weld geometry can create fabrication problems during pile splicing, column connection, or structural assembly. | We control edge preparation, forming accuracy, welding parameters, weld appearance, and final dimensional inspection before shipment. NDT can be added according to the project requirement. |
| Structural pipe buyers often need coating, fixed length, beveling, and documentation in one order. | Multiple suppliers increase coordination time and increase the chance of dimensional or document mismatch. | We can supply pipe cutting, beveling, shot blasting, primer coating, anti-corrosion coating, marking, packing, and inspection documents under one controlled production workflow. |
| Standard System | Relevant Standard | Short Description |
| ASTM | ASTM A134 / A134M | Electric-fusion arc-welded steel pipe, NPS 16 and larger |
| ASTM | ASTM A36 / A36M | Carbon structural steel plate for general structural use |
| ASTM | ASTM A283 / A283M | Low and intermediate tensile strength carbon steel plate |
| ASTM | ASTM A572 / A572M | High-strength low-alloy columbium-vanadium structural steel |
| ASTM | ASTM A516 / A516M | Carbon steel plate for moderate and lower temperature pressure vessel service |
| EN | EN 10219 | Cold formed welded structural hollow sections |
| EN | EN 10025 | Hot rolled structural steel products |
| JIS | JIS G3101 / JIS G3106 | Rolled steels for general and welded structures |
| GB | GB/T 3091 / GB/T 9711 / GB/T 700 | Welded steel pipe and carbon structural steel references |
| GOST | GOST 10704 / GOST 10705 | Electric-welded steel pipe references |
Bridge pier casing pipe — ASTM A134 large-diameter EFW steel pipe can be used as bridge pier casing pipe where the structure requires large outside diameter, stable roundness, weld integrity, and reliable load transfer during foundation construction.
The following table lists commonly used plate grades that may be ordered for ASTM A134 pipe production. Final chemical composition shall follow the specified plate standard, thickness range, and purchase order.
| Grade | C % | Mn % | P % | S % | Si % | Other Elements |
| ASTM A36 | ≤0.26 | ≤1.03 | ≤0.040 | ≤0.050 | ≤0.40 | Cu ≥0.20 when copper steel is specified |
| ASTM A283 Grade C | ≤0.24 | ≤0.90 | ≤0.035 | ≤0.040 | 0.15–0.40 | Carbon steel plate for low to intermediate strength structures |
| ASTM A285 Grade C | ≤0.28 | ≤0.90 | ≤0.025 | ≤0.025 | As specified by standard / purchase order | Low and intermediate tensile strength carbon steel plate |
| ASTM A572 Grade 50 | ≤0.23 | ≤1.35 | ≤0.040 | ≤0.050 | ≤0.40 | Nb, V, or Nb+V according to ASTM A572 requirements |
| ASTM A516 Grade 70 | ≤0.22 | 1.00–1.70 | ≤0.030 | ≤0.030 | ≤0.60 | Cu ≤0.30, Ni ≤0.30, Cr ≤0.30, Mo ≤0.08 typical limits |
| Grade | Yield Strength | Tensile Strength | Elongation | Typical Use in ASTM A134 Pipe |
| ASTM A36 | ≥250 MPa | 400–550 MPa | ≥20% in 200 mm / ≥23% in 50 mm | General structural pipe, columns, supports, frames |
| ASTM A283 Grade C | ≥205 MPa | 380–515 MPa | ≥22% in 200 mm / ≥25% in 50 mm | Low to moderate strength structural pipe |
| ASTM A285 Grade C | ≥205 MPa | 380–515 MPa | ≥23% in 200 mm / ≥27% in 50 mm | Welded structural or low-pressure fabricated components |
| ASTM A572 Grade 50 | ≥345 MPa | ≥450 MPa | ≥18% in 200 mm / ≥21% in 50 mm | Higher-strength structural pipe and heavy-load members |
| ASTM A516 Grade 70 | ≥335 MPa | 510–650 MPa | Thickness-dependent; commonly ≥17–21% | Structural pipe requiring higher tensile strength and improved plate quality |
A: manufacturer,also can do trading.
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
|
|
